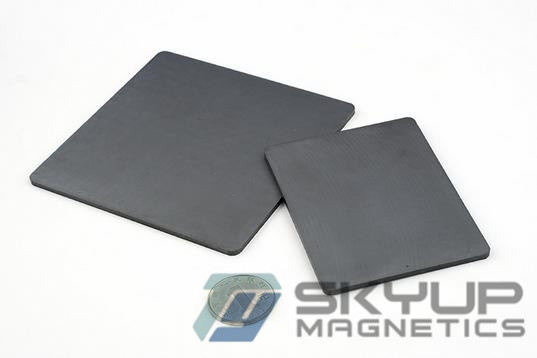

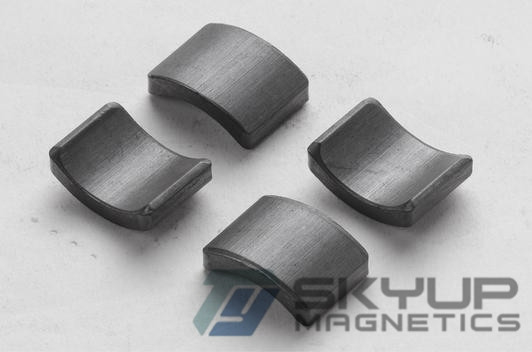

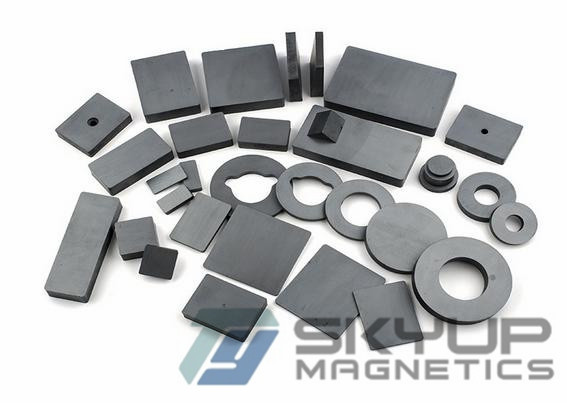

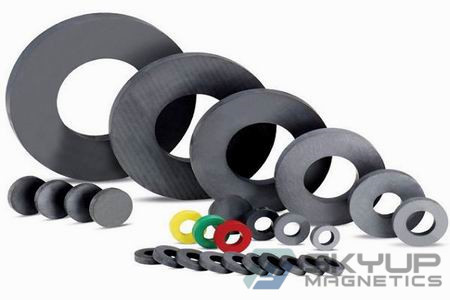

Sintered ferrite magnets/ferrite ring magnet/barium ferrite magnet

Place of Origin China
Brand Name Skyup
Certification ISO9001/TS 16949
Model Number 35H-50H
Minimum Order Quantity No minimum order quantity
Price USD0.01-0.1/PCS
Packaging Details In cartons, wooden pallet or Box
Delivery Time 15-20Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability 15000Tons per year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Materials Ferrite Magnet Plating NiCuNi,Zn.Epoxy
Application Magnets Used In Linear Motor Capacity 15000Tons Per Year
Certification ISO/TS 16949,ROHS Shape Block,Rectangular,Cube,Block, Cylinder, Disc, Arc, Ring
Leave a Message
Product Description

01.Ceramic /Ferrite Magnets Introduction

Ceramic magnet, i.e. ferrite magnet, is a kind of permanent magnet mainly manufactured by raw material of (SrO) SrO or BaO and Fe2O3. Compared with other magnets, ferrite magnet is hard and brittle, and the magnetic energy is relatively low. But it is difficult to demagnetize and go corrosion, the production process is simple and the price is cheap, therefore, in the whole magnet industry the output of ferrite magnet is the highest and they are widely used in industrial production.

Ferrite magnets belong to sintered permanent magnetic materials , are composed of barium or strontium iron body mainly. This kind of magnet has a strong resistance to demagnetization, and owns the advantages of low cost in addition. Ferrite magnets are hard and brittle. They need special machining process in production. It can be divided into anisotropic magnets and isotropic ferrite magnets. The magnetism orientation of anisotropic ferrite magnets is oriented in a certain direction, and can only be magnetized along this direction. While there is no certain orientation of isotropic ferrite magnets, so they can be magnetized along any direction after production. Isotropic ferrite magnet is relatively weaker than anisotropic one. The magnetic energy product range of ferrite magnets is between 1.1 MGOe to 4.0 MGOe. Owing to the low cost and economic effect, ferrite magnet has a very wide application field from the motors, the speakers, the toys to crafts, so it is the most widely used permanent magnet material.

02.Typical Magnetic Performance for Ceramic Magnets

Mostly Used Standard

Grade Value(min/typical in our factory)
Br Hcb(BHC) Hcj(IHC) (BH)max
MT KG KA/m Koe KA/m KOe Kj/m3 MGOe
Y10T(=C1) 200/218 2.00/2.18 125/145 1.57/1.82 210/250 2.64/3.14 6.5/8.0 0.8/1.0
Y25 360/370 3.60/3.70 135/150 1.70/1.88 140/170 1.76/2.14 22.5/25.3 2.8/3.2
Y30(=C5) 380/385 3.80/3.85 191/210 2.40/2.64 199/220 2.50/2.51 26.0/28 3.4/3.7
Y30BH 380/390 3.80/3.90 223/235 2.80/2.95 231/245 2.90/3.08 27.0/30.0 3.4/3.7
Y33 410/420 4.10/4.20 220/235 2.77/2.95 225/240 2.83/3.01 31.5/33.0 4.0/4.2
Y35 400/410 4.00/4.10 175/195 2.20/2.45 180/200 2.26/2.51 30.0/32.0 3.8/4.0
C8(=C8A) 385/390 3.85/3.90 235/255 2.95/3.20 242/265 3.05/3.33 27.8/30.0 3.5/3.7
C10 400/410 4.00/4.10 288/300 3.62/3.77 280/287 3.51/3.60 30.4/31.9 3.8/4.0

Chinese Standard

Sintered ferrite magnets/ferrite ring magnet/barium ferrite magnet 0

USA Standard

Sintered ferrite magnets/ferrite ring magnet/barium ferrite magnet 1

Europe Standard

OX100=Y10T=C1 OX300=Y30=C5 OX330=Y30BH
The standard from International Electronics Committee(IEC404-8-1)

Grade Allowed Value (min/typical)
Br Hcb(BHC) Hcj(IHC) (BH)max
MT KG KA/m KOe KA/m KOe Kj/m3 MGOe
HF8/22 200/220 2.00/2.20 125/140 1.57/1.76 220/230 2.76/2.89 6.5/6.8 0.8/1.1
HF20/19 320/333 3.20/3.33 170/190 2.14/2.39 190/200 2.39/2.51 20.0/21.0 2.5/2.7
HF20/28 310/325 3.10/3.25 220/230 2.76/2.89 280/290 3.52/3.64 20.0/21.0 2.5/2.7
HF22/30 350/365 3.50/3.65 255/265 3.20/3.33 290/300 3.64/3.77 22.0/23.5 2.8/3.0
HF24/16 350/365 3.50/3.65 155/175 1.95/2.20 160/180 2.01/2.26 24.0/25.5 3.0/3.2
HF24/23 350/365 3.50/3.65 220/230 2.76/2.89 230/240 2.89/3.01 24.0/25.5 3.0/3.2
HF24/35 360/370 3.60/3.70 260/270 3.27/3.39 350/360 4.40/4.52 24.0/25.5 3.0/3.2
HF26/16 370/380 3.70/3.80 155/175 1.95/2.20 160/180 2.01/2.26 26.0/27.0 3.2/3.4
HF26/18 370/380 3.70/3.80 175/190 2.20/2.39 180/190 2.26/2.39 26.0/27.0 3.3/3.4
HF26/24 370/380 3.70/3.80 230/240 2.89/3.01 240/250 3.01/3.14 26.0/27.0 3.3/3.4
HF26/26 370/380 3.70/3.80 230/240 2.89/3.01 260/270 3.27/3.39 26.0/27.0 3.3/3.4
HF26/30 385/395 3.85/3.95 260/270 3.27/3.39 300/310 3.77/3.89 26.0/27.0 3.3/3.4
HF28/26 385/395 3.85/3.95 250/265 3.14/3.33 260/275 3.27/3.45 28.0/30.0 3.5/3.8
HF28/28 385/395 3.85/3.95 260/270 3.27/3.39 280/290 3.50/3.60 28.0/30.0 3.5/3.8
HF30/26 395/405 3.95/4.05 250/260 3.14/3.33 260/270 3.27/3.39 30.0/31.5 3.8/3.9
HF32/17 410/420 4.10/4.20 160/180 2.01/2.26 165/175 2.07/2.20 32.0/33.0 4.0/4.1
HF32/22 410/420 4.10/4.20 215/225 2.70/2.83 220/230 2.76/2.89 32.0/33.0 4.0/4.1
HF32/25 410/420 4.10/4.20 240/250 3.01/3.14 250/260 3.14/3.27 32.0/33.0 4.0/4.1

03.Ceramic Magnets

Ferrite magnets are permanent magnets , not rare earth magnets, it is mainly made from iron oxide and strontium carbonate by ceramic processing technology, also called ceramic magnets.

Ferrite magnets are brittle, can be manufactured by die pressing and then sintering, can be made into various shapes and sizes. Its normal operating temperature is between -40℃ and 250℃. Ceramic magnets are the most commonly used permanent magnet materials due to their low cost, easy to produce, excellent corrosion and demagnetization resistance properties. It can be produced either isotropic or anisotropic. C3, C5 & C8 magnets are anisotropic. If you need the strongest magnetic materials, we suggest sintered NdFeB magnets like N52.

If you demand such magnets, welcome to send us the details as follows:

Type: Permanent Magnet

Material: Sintered Ferrite

Grade: Y30, Y30BH, Y33 etc

Magnetization Direction

Shape & Size & Tolerance: According to clients’ requirement, can custom special & complex shapes

Application: industrial, motors, speaker, air conditioning systems, crafts, daily life, cow, etc.
